Draw clip region (DrawClipRegion)

This is a command-line tool for drawing clip rectangle and fan over ultrasound images. Clipping parameters are read from ElementVolumeReconstruction “VolumeReconstruction” element of the device set configuration file.

If automatic fan angle detection is enabled then the maximum considered fan region is shown with dotted line and the actually detected and used fan region is shown with solid line. See demo video at https://www.youtube.com/watch?v=ss7ZTRTNWio .

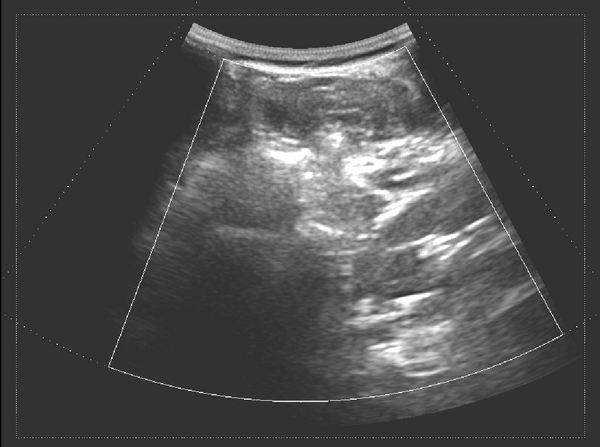

Draw clip region example

Examples

DrawClipRegion --config-file=PlusDeviceSet_VolumeReconstructionOnly_FanAnglesAutoDetect.xml --source-seq-file=UsSimulatorOutputSpinePhantom2CurvilinearBaseline.mha --output-seq-file=UsSimulatorOutputSpinePhantom2CurvilinearBaselineWithClipRegion.mha

Command-line parameters reference

\verbinclude “DrawClipRegionHelp.txt”
