fCal Calibration Phantoms
Calibration phantoms for ultrasound probe calibration and validation.
Models

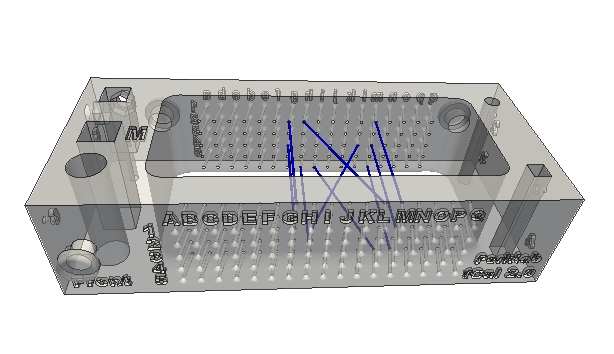

fCal-2.0
Phantom for freehand spatial ultrasound calibration for shallow depth (up to 9 cm).
Downloads:
fCal_2.0.stl (Modified: 2016-08-08)
fCal-2.1
Phantom for freehand spatial ultrasound calibration for shallow depth (up to 9 cm).
Downloads:
fCal_2.1.stl (Modified: 2016-08-08)

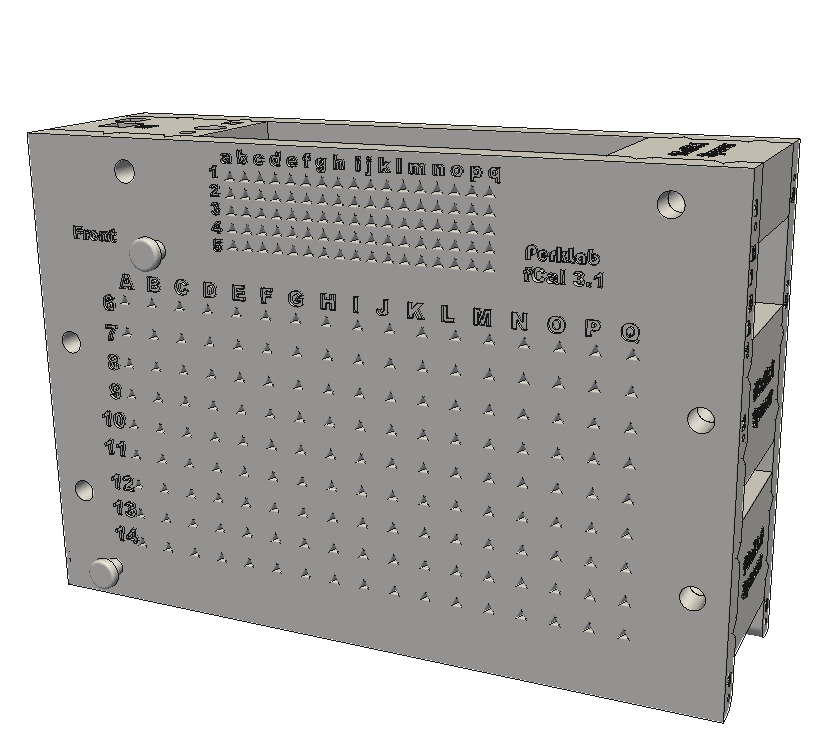

fCal-3.1
Phantom for freehand spatial ultrasound calibration for deep structures (up to 30 cm).
Downloads:
fCal_3.1.stl (Modified: 2016-08-08)
fCal_3.1_back.stl (Modified: 2016-08-08)
fCal_3.1_front.stl (Modified: 2016-08-08)
fCal_3.1_left.stl (Modified: 2016-08-08)
fCal_3.1_spacer.stl (Modified: 2016-08-08)

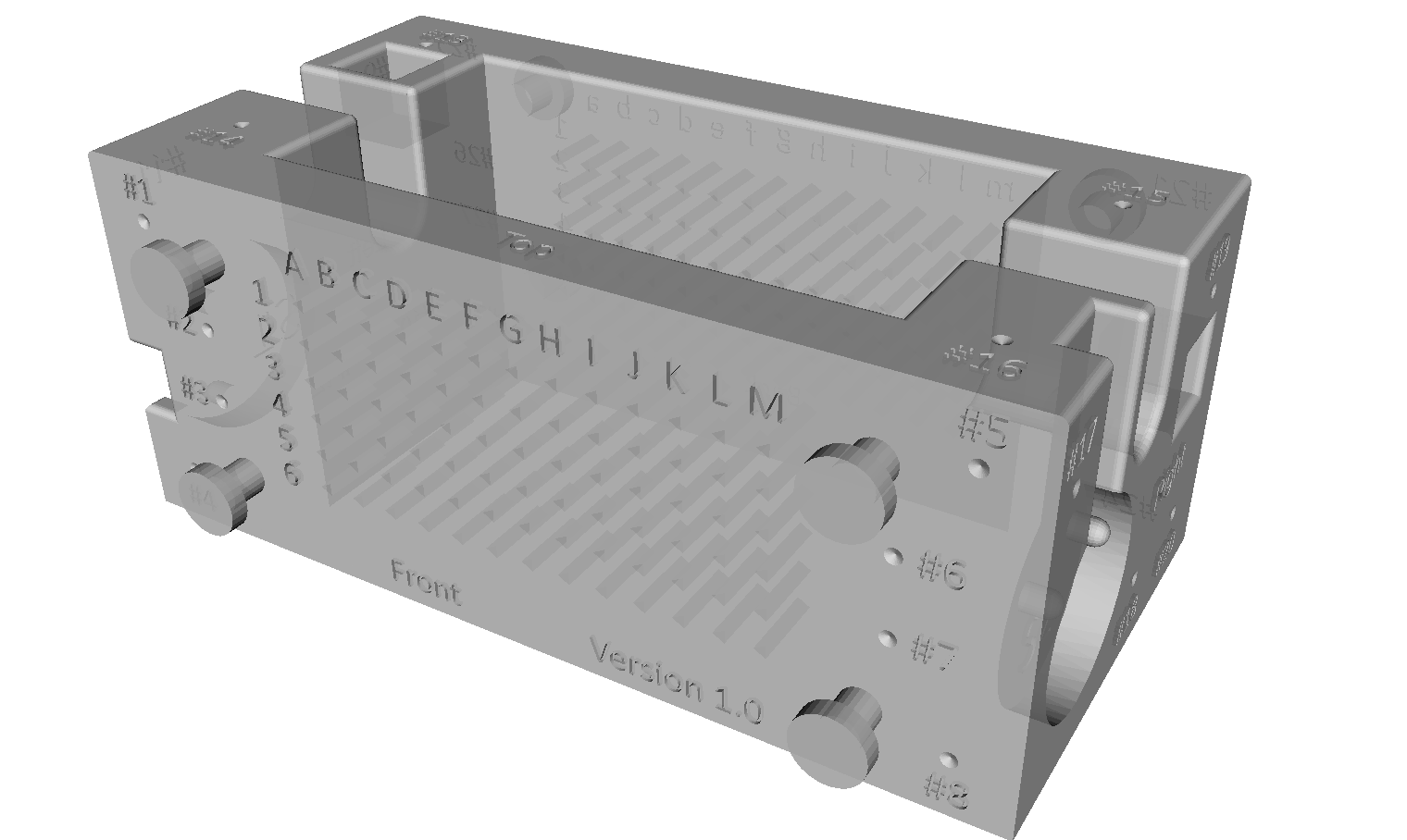

fCal_Echo1.0
Phantom for freehand spatial ultrasound calibration of tube-shaped echo probes such as intracardiac echo (ICE) catheters and transesophageal echo (TEE) probes.
Developed by Robert Kreher (Otto-von-Guericke-University Magdeburg, Germany, Stimulate Research Campus).
Downloads:
fCal_Echo1.0.stl (Modified: 2020-06-27)
